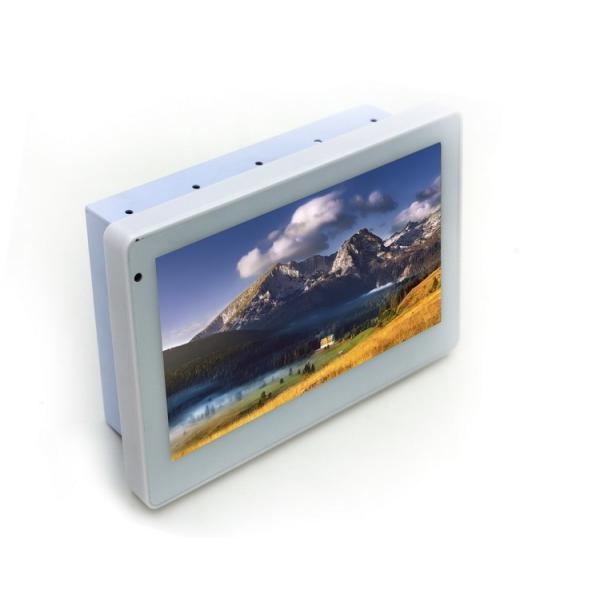

Q896S In Wall Android GPIO Tablet PC With Power Over Ethernet For Controlling

Ask Lasest Price
Brand Name :	SIBO
Model Number :	Q896S
Certification :	CE, FCC
Payment Terms :	T/T
Supply Ability :	2000pcs/month
Delivery Time :	5-25 working days

Add to Cart

Product Details
Company Profile

Q896S In Wall Android GPIO Tablet PC With Power Over Ethernet For Controlling

Q896S In Wall Android GPIO Tablet PC With Power Over

Ethernet

Main Features:

Android OS rooted
Inwall flush/onwall surface/glass wall/desktop different mounting ways
CBVS , HDMI, USB 2.0(default by USB host),GPIO/RS232/RS485
No physical buttons design & No battery design
POE (IEEE 802.3 af 48V)
Optional to remove Android navigation bar(support full screen software application in kiosk mode)
Optional to provide USB jumper to connect PC for debugging

Q896 is inwall android gpio tablet pc with power over ethernet. GPIO is the abbreviation of General Purpose Input Output. With GPIO, you can turn on or turn off the your home appliances. And also you can check the sistuation of your home appliance. It is designed for inwall mounting. Q896 is a tablet carries with GPIO and operates with Android 4.2.2 system, so that you can enjoy the apps from the google store. And with poe, you are able to enjoy both the net and power supply.

Specification:

Model Number		Q896S
Hardware Specs	Processor	Allwinner A83T processor
	CPU	8-Core ARM Cortex A7 CPU, 1.2Ghz
	Display	7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2
	RAM	2GB
	Nand Flash	8GB

Software Feature	System	Google Android 6.0
	Video	H.264 2160p video decoding, Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc. H.264 High Profile 1080p@30fps or 720@60fps encoding 3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols
	Audio	Two Speakers 2 X 1 Watt (Integrated 3W Amplifier For External Speakers)
	Language	Support multi-languages

Interfaces	Back	HDMI Out
		DC IN Power Terminal (9V-36V)
		Ethernet Interface(RJ45)
		USB Socket HOST Mode By Default, Can be configurated to DEVICE
		Optional:RS232,RS485

Network	WIFI+BLUETOOTH	WIFI (802.11b/g/n), Bluetooth V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0
	LAN Port	Ethernet RJ45

Power Supply	DC IN	DC 9V - 36V

Boot Up	Auto Boot	Auto Boot Up When Power Supplies

Product Description

Hardware Specs:

Screen:7 inch
Capacitive touch screen, glass + glass
1024X600 resolution, 350 nits brightness
No any buttons

Power Supply:

DC IN : DC 9V-36V
POE(optional): IEEE 802.3 AF(48V)

Interfaces:

Ethernet Interface(RJ45)
HDMI Out
USB Socket
CVBS IN to Connect CCTV Camera
UART, IO, 3W AMP OUT Available: RS485, RS232

Network:

WLAN(WIFI802.1b/g/n)
Bluetooth
LAN Ethernet RJ45

Q896 Android Home Tablet With Ethernet RJ45

Inwall mount picture

poe picture:

GPIO picture

Application:

Home automation, control other devices in home
Data collection
Security system
Showing energy data in homes
Home/Building/Hotel Automation Integration

Our Services

Advantages:

15 Years Experiences in Tablet PC for Automation
Competitive Price Directly From Manufacturer( Our Own Factory)
Excellent Support for Software and Hardware Modification
Services for Customized Logo and package
Quick Response for after-sale Services
On-time Delivery
1 Year quality Guarantee

As a manufacturer, ODM/OEM service is provided
